Minimal
Use only the necessary
Modular
Make your own set
Outdoor
Durable for outdoor use

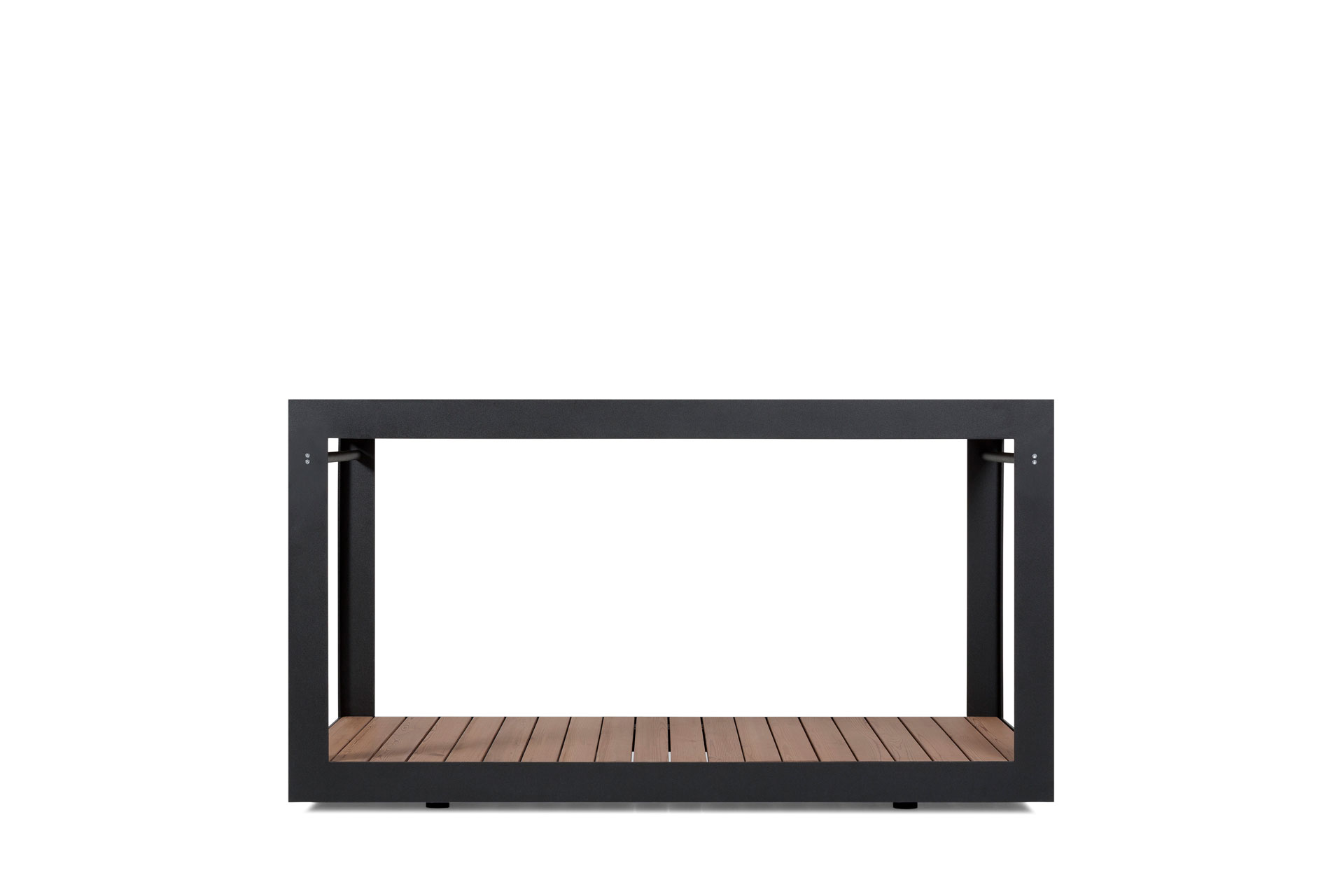

Frame
The basis of the outdoor kitchen is a frame onto which it is possible to place different worktops, a sink and/or a grill. The frame is made for one small module + two large modules.
Both the frame and the wooden surface are weatherproof. As the frame is made of aluminium, it’s easy to manoeuvre. Round pipes for easier lifting and hanging grill tools are on both ends of the frame.
dimensions
850 x 610 x 1520 mm
material
frame – aluminium, powder coated black RAL 9005 or white RAL 9003; thermo - treated oiled ash grates on the bottom
Frame

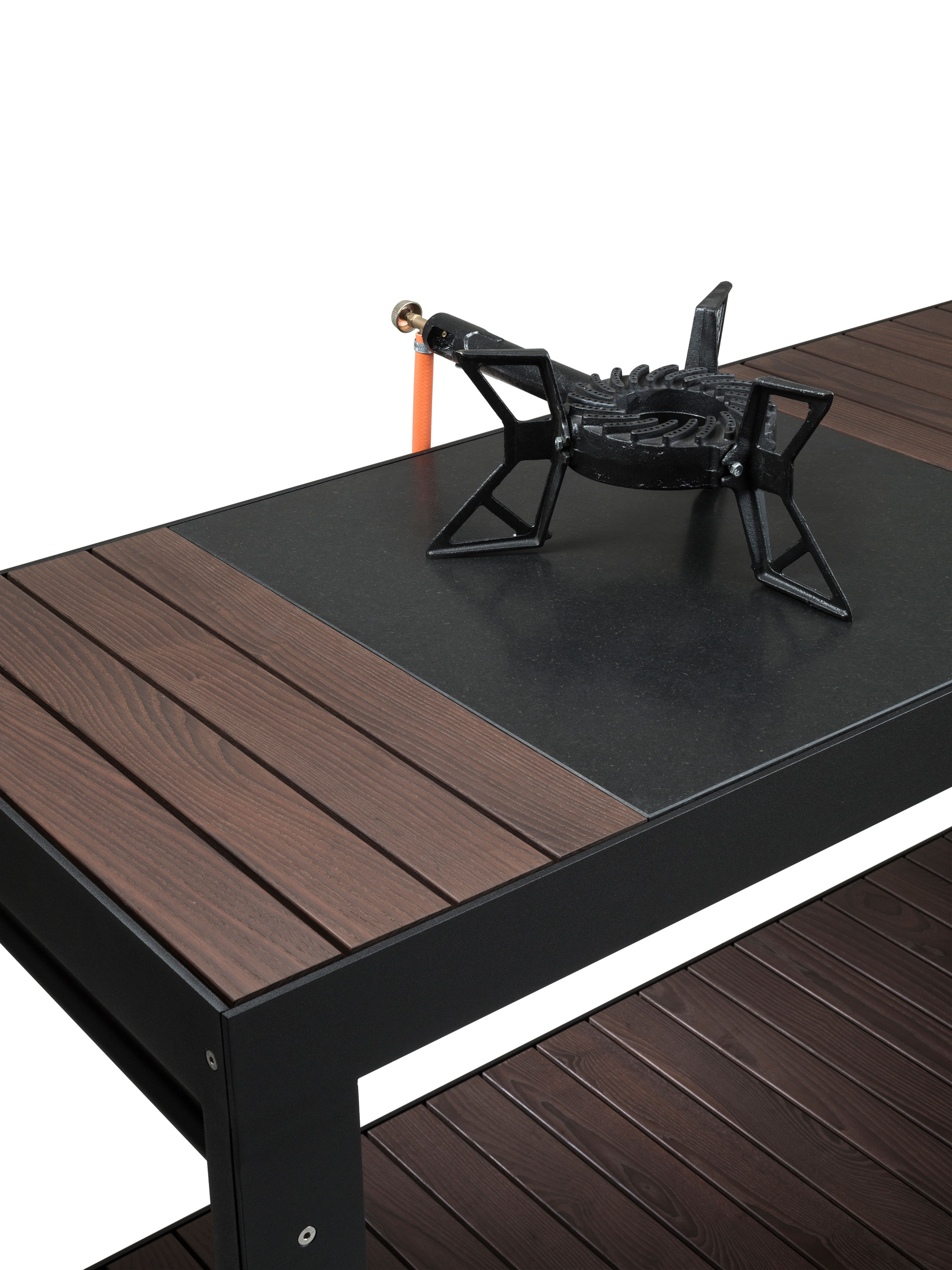

Natural stone worktop
Natural stone worktop
Instead of wood, stone can also be selected as a worktop. The black granite or white composite, stone is not afraid of rain, wine or a knife. The stone surface suits well under a gas cooker, because it is heat resistant and non-flammable.
dimensions
large 595 x 595 x 20 mm, small 295 x 595 x 20 mm
material
black granite or white composite, honed surface, honed and chamfered edges

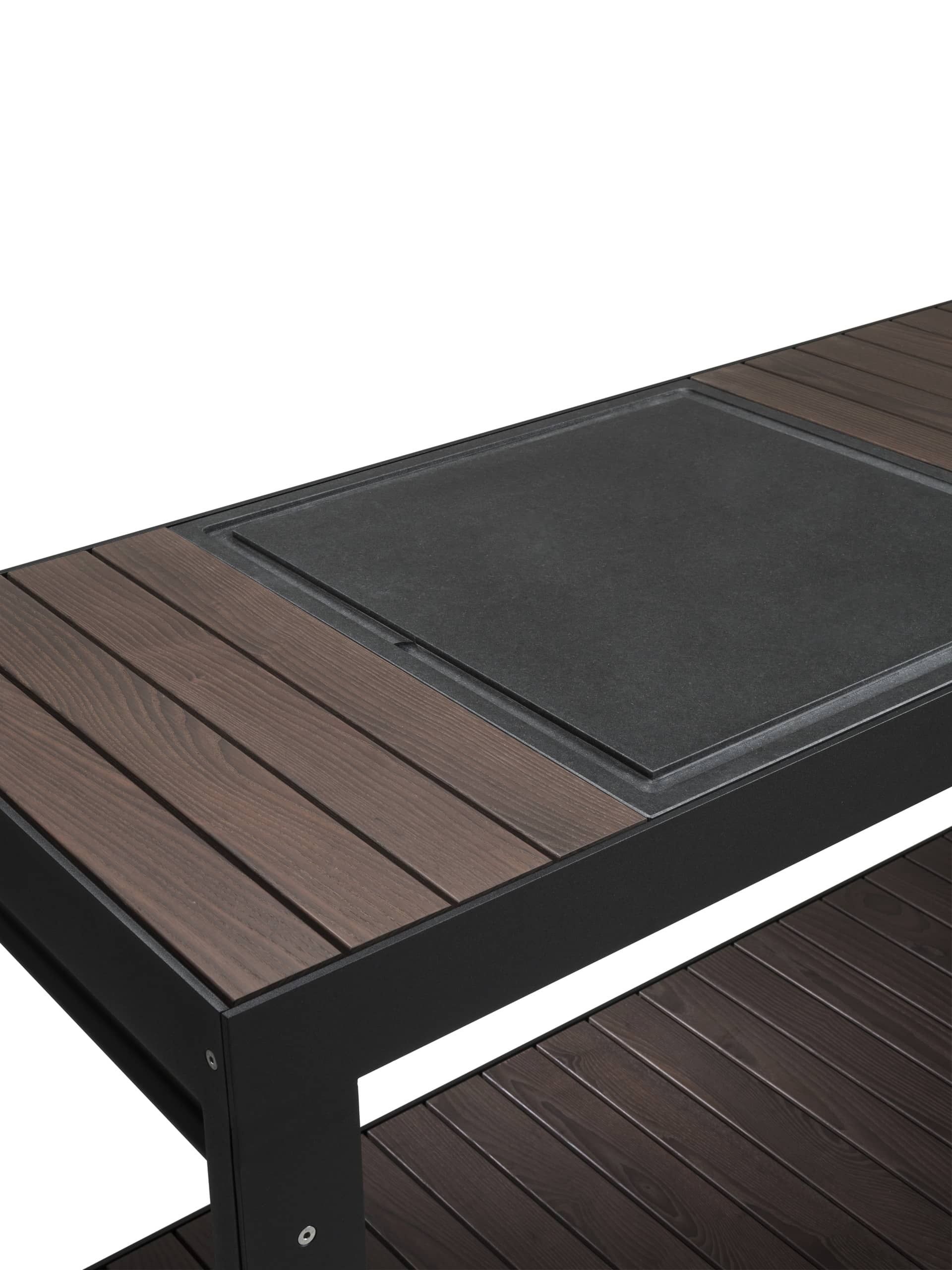

Worktops with drainer
Stone worktop with a drainer is excellent for preparing food, because the groove at the edge of the plate collects the liquid from chopping, stopping it from flowing over the edge of the worktop. Black granite or white composite cutting board is weatherproof, its surface is not afraid of lemon, berries or a chopping knife.
dimensions
595 x 595 x 20 mm
material
black granite or white composite, honed surface, honed and chamfered edges
20 mm wide groove and an opening at the edge to pass through the liquid
Worktops with drainer

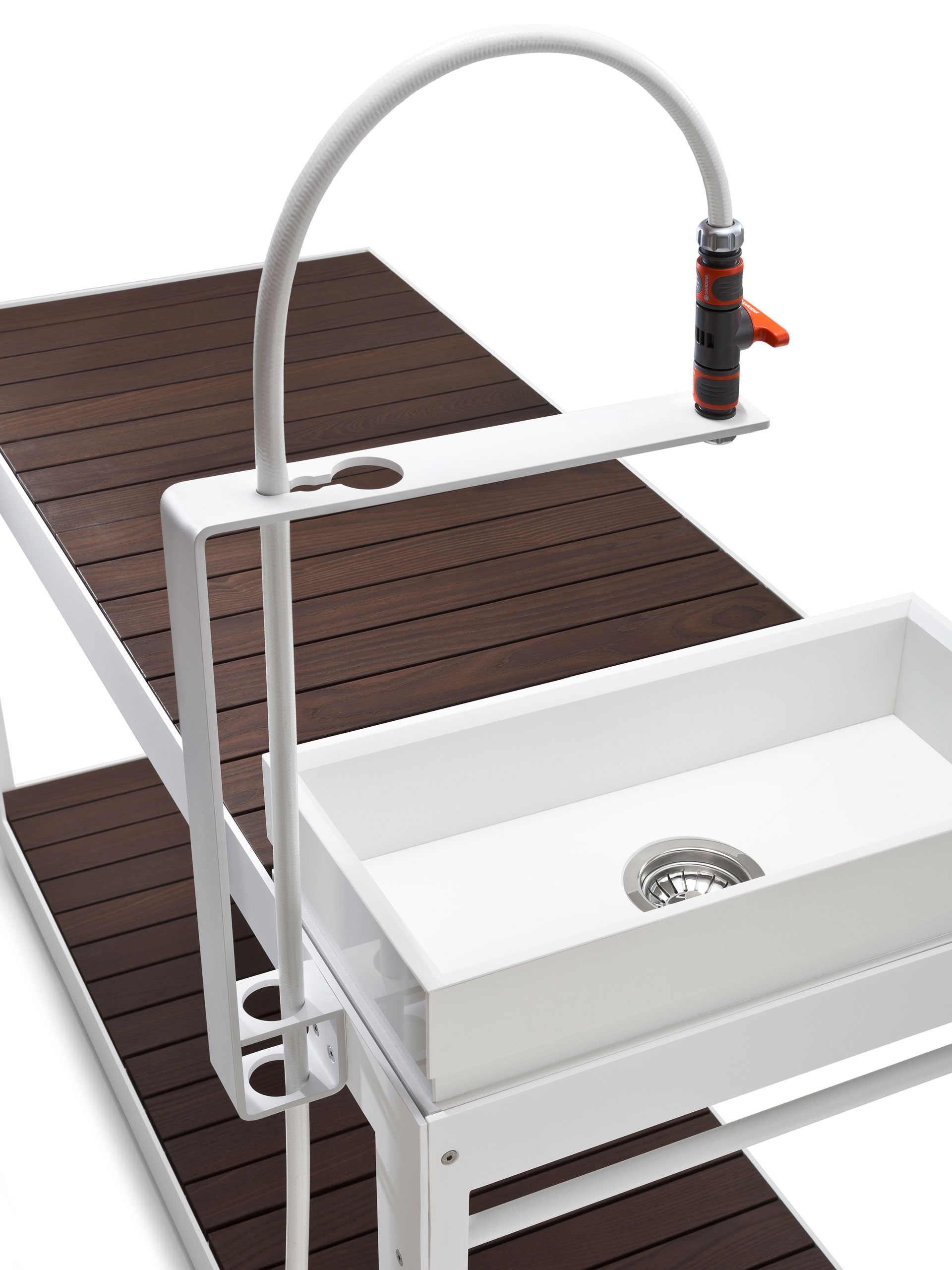

Sink
Sink
The sink is for washing vegetables, dishes and hands. There is a groove for the fingers at the bottom edge of the sink for lifting.
The water comes from your own garden hose, which is held in position by a hose holder connected to the frame – this fixes a hose with a diameter up to 20 mm. There is a tap at the end of the hose holder.
The used water can be guided by a hose either to a rainwater drainpipe, flowerbed or ditch. Or it can also be collected into a bucket, and later used for watering tomatoes.
sink
dimensions
295 x 595 x 130 mm
material
black granite or white composite, honed surface
20 mm high groove at the bottom edge for lifting
hose holder
dimensions
400 x 490 x 60 mm
material
aluminium, powder coated black RAL 9005 or white RAL 9003

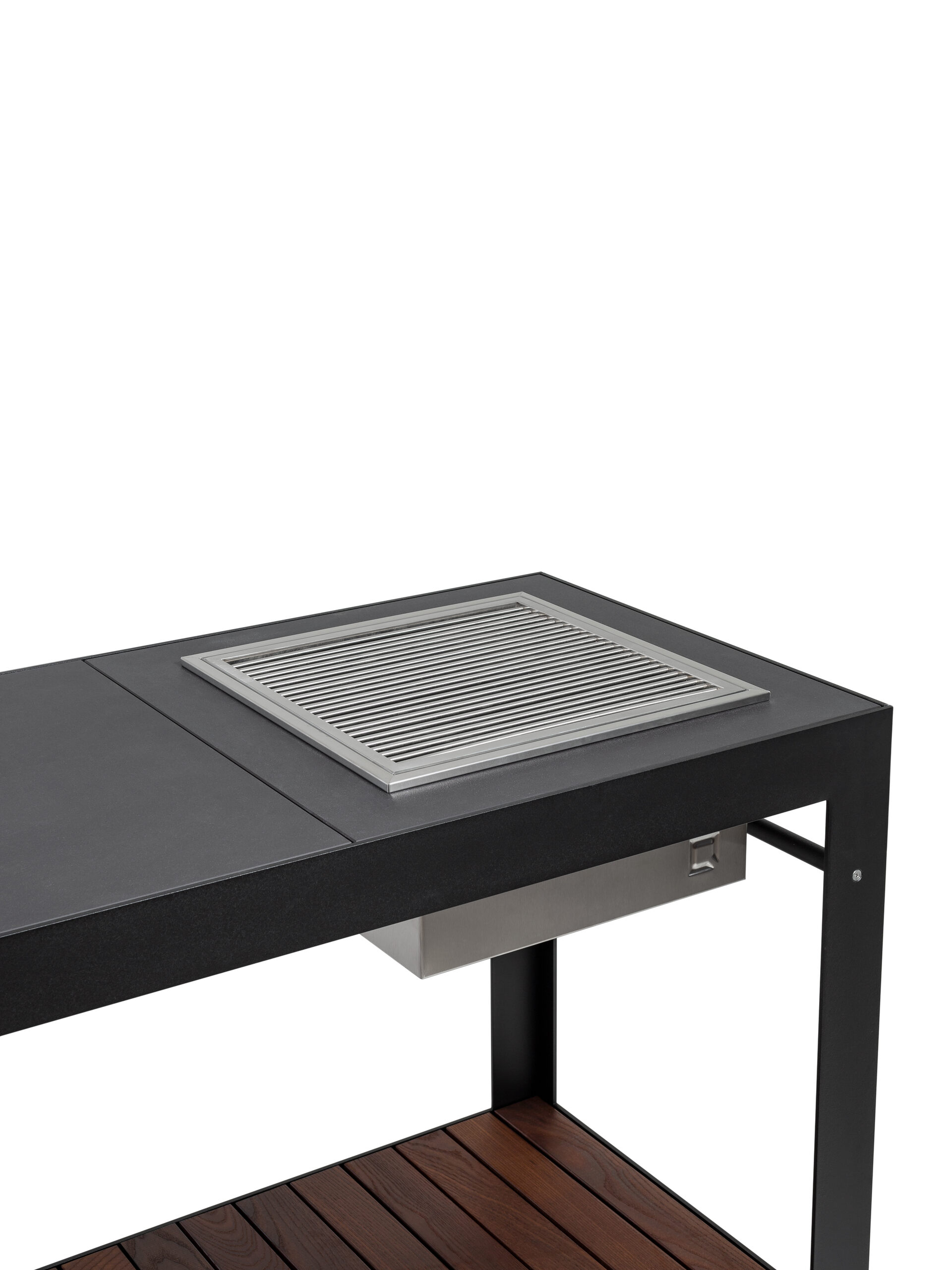

Charcoal grill
A simple charcoal grill integrated into the work surface with a separate pull-out charcoal drawer. Grill grate size 400x400mm
dimensions
410 x 410 mm
material
painted steel tin + painted steel inner ash catcher, coated by heat resistant paint, black.
Charcoal grill

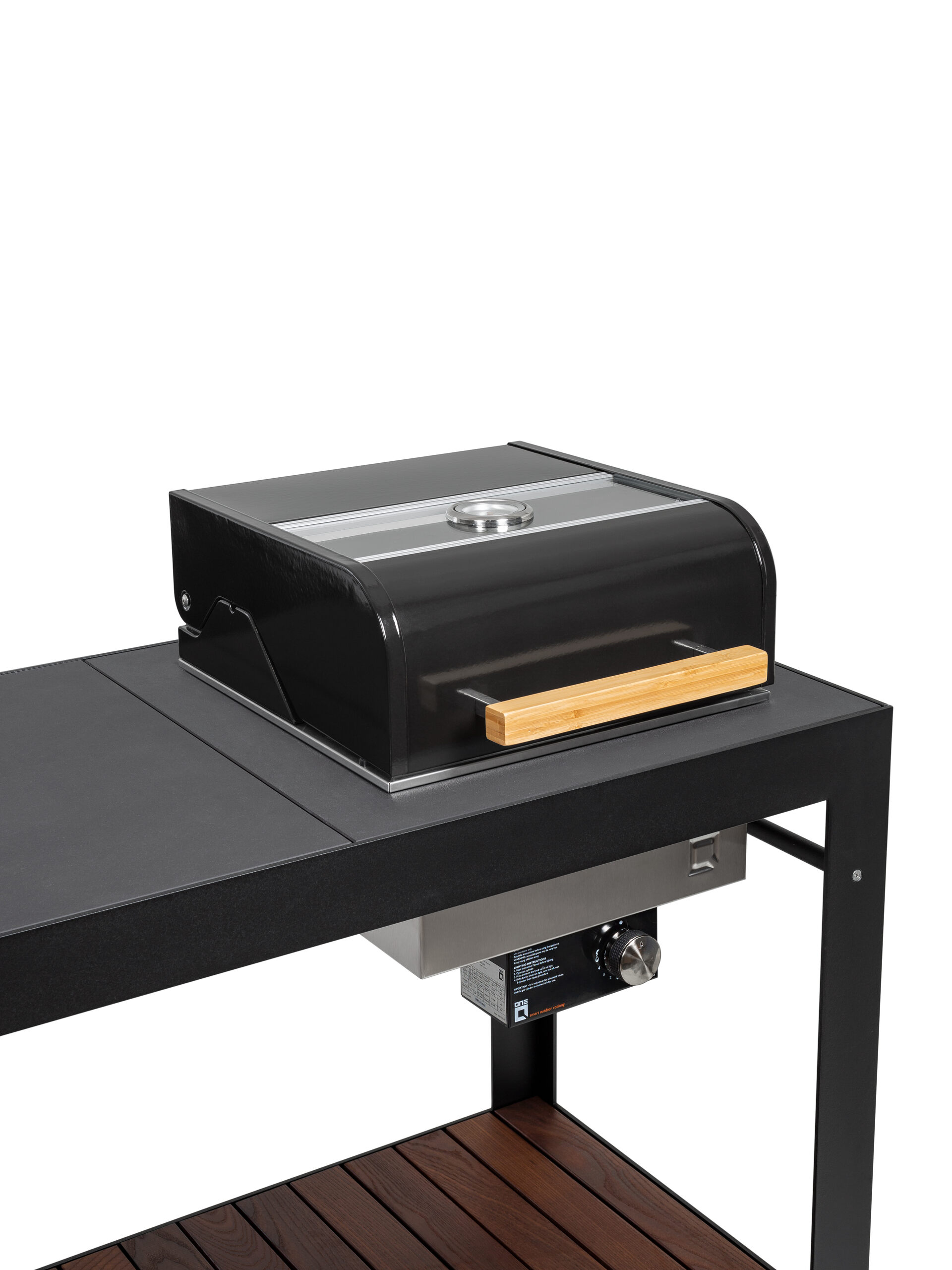

Gasgril
Gasgril
8 kW working surface integrated gas grill. The gas grill is equipped with patented gas burners, which ensures that there are no cold spots on the grill grate. The gas grill can also be ordered without a lid. Grill grate size 400x400mm.
dimensions
410 x 410 mm
material
stainless steel grill grate + stainless steel coated by heat resistant paint, black.

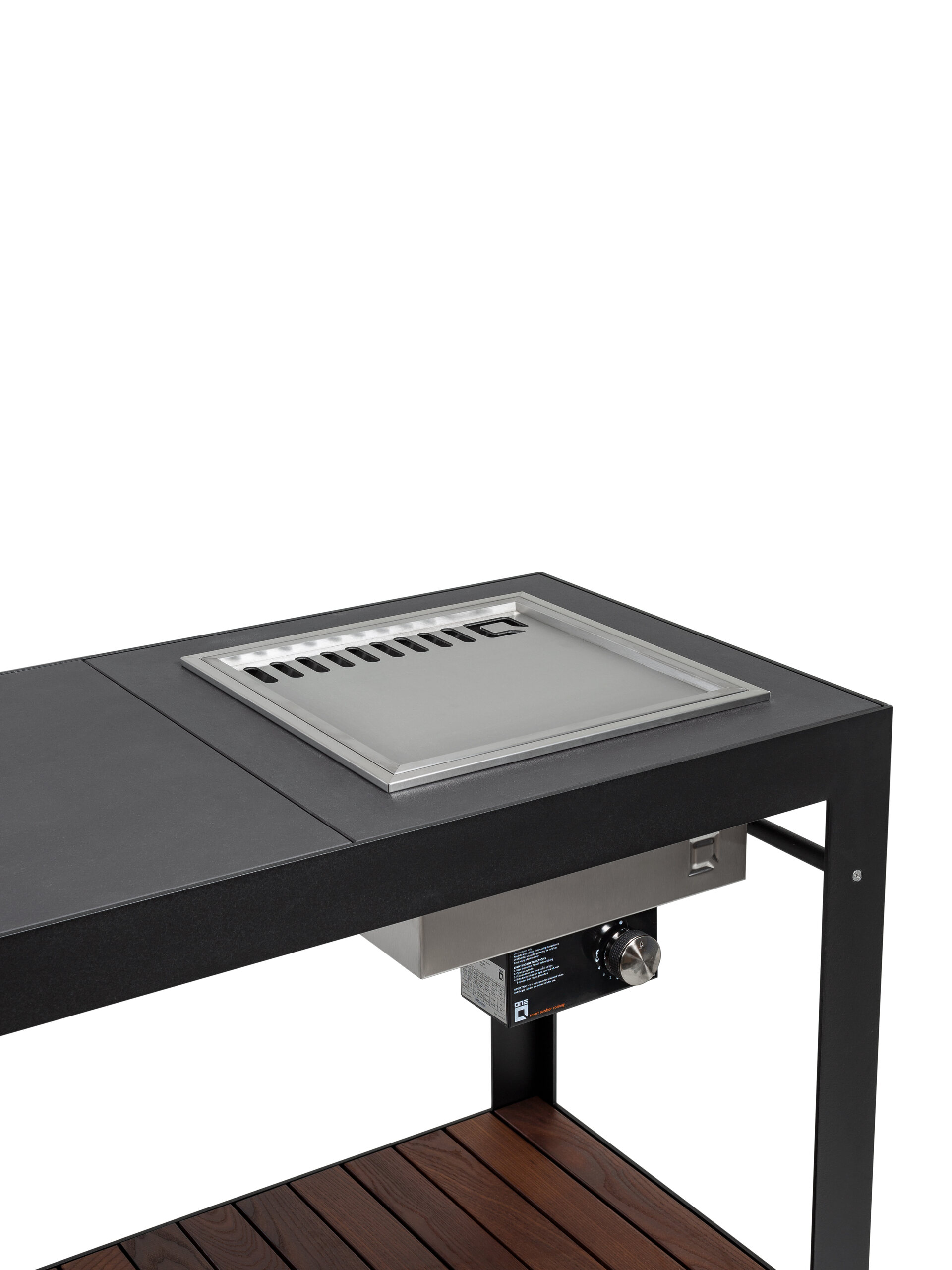

Teppanyaki
Stainless steel work surface integrated into the 8 kW work surface. The gas grill is equipped with patented gas burners, which ensures that there are no cold spots on the grill grate. The gas grill can also be ordered without a lid. Grill plate size 400x400mm
dimensions
410 x 410 mm
material
stainless steel work surface + stainless steel coated by heat resistant paint, black.
Teppanyaki

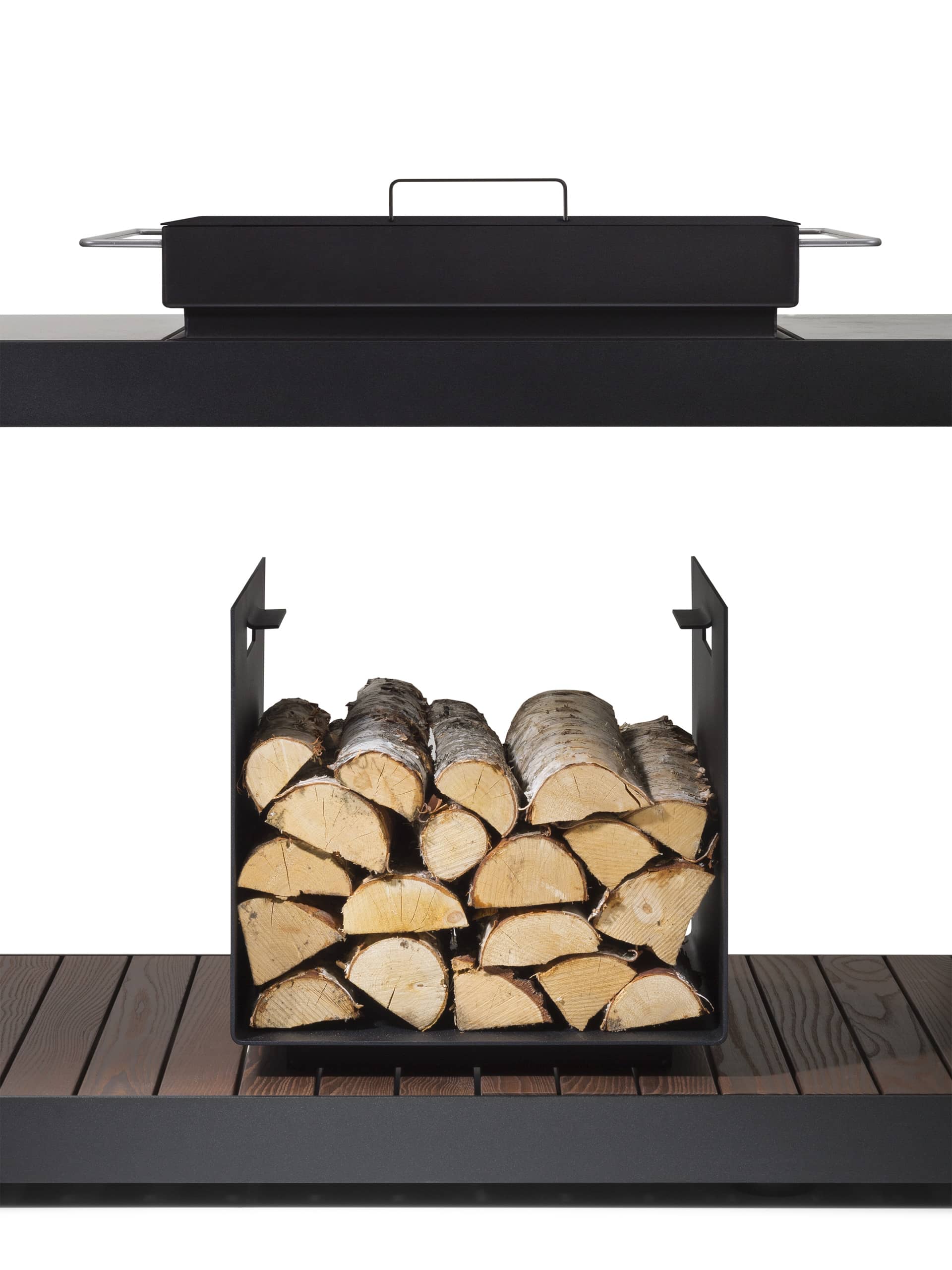

Firewood rack
Firewood rack
The firewood rack is for storing firewood. It is easy to lift as it is made of aluminium; the top and bottom are covered with stone and thermo-treated wood grate.
dimensions
h460 x 470 x 470 mm
material
aluminium, powder coated black RAL 9005 or white RAL 9003
Outdoor kitchen combinations
Combination 1
small wooden worktop
2 x large wooden worktop
Combination 2
small stone worktop
2 x large stone worktop
Combination 3
sink and hose holder
stone worktop with drainer
large stone worktop
Combination 4
small stone worktop
large stone worktop
charcoal grill
Combination 5
small stone worktop
large stone worktop
teppanyaki gasgrill
Combination 6
small stone worktop
large stone worktop
gasgrill
Combination 7
sink and hose holder
large stone worktop
charcoal grill
Combination 8
sink and hose holder
large stone worktop
teppanyaki gasgrill
Combination 9
sink and hose holder
stone worktop with drainer
gasgrill
